Introduction

RELA Horizontal Ribbon Blenders (WLDH) are designed with characters of high mixing efficiency, high degree of homogeneity, high loading capacity, low energy consumption, small occupation area, etc. It is applicable for mixing a wide range of powder-powder, powder-liquid, even paste.



Working Principle

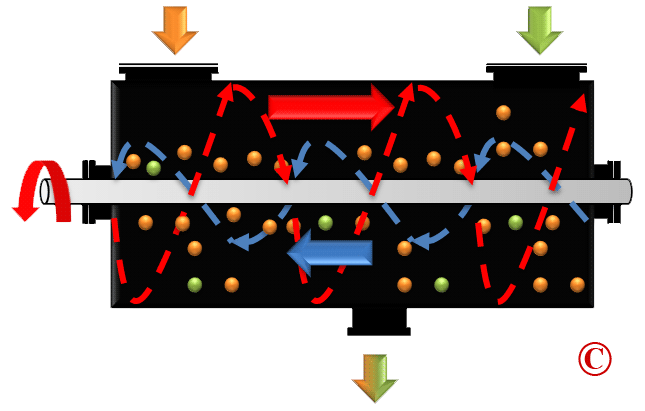

The main parts of WLDH are U-shape bowl, double layers ribbons with shaft, driving system, cover with loading ports and pneumatic discharge port. The materials being blended are loaded from top ports. The loading factor is 40%-60%. The outer layer ribbon pushes the material to the center from two ends, while the inner layer ribbon disperses the material from center to two ends (see the right chart). Thus, the materials are mixed homogeneously in short time.

Our ribbon blender can be equipped with heating or cooling jacket if temperature control is required. Besides, it can tolerate about 10% liquid additives! We will add spraying or atomizing unit inside the tank if required.

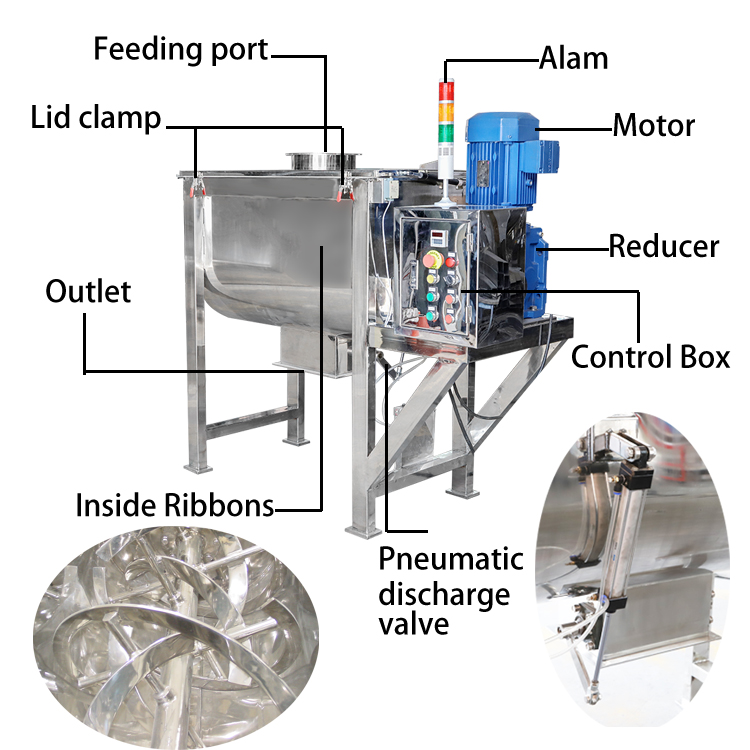

图片5WLDH structure of Ribbon Blender

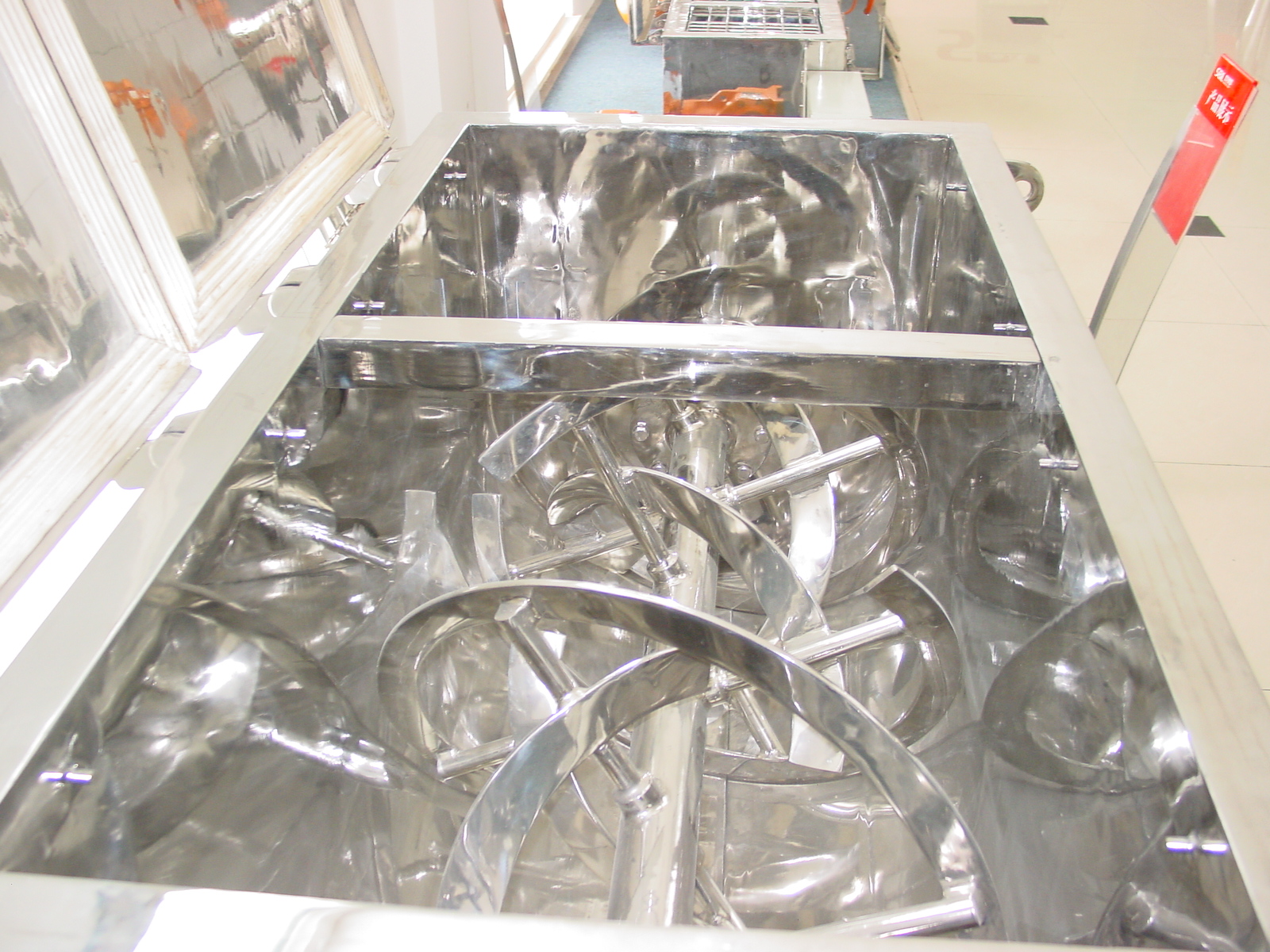

RIBBON

Features
  • The powerful driving system (motor, reducer, gears, etc.) is adopted.

  • Two layers ribbons stir and mix the product more efficiently.

  • pneumatic valve ensures convenient discharging of material

  • All contact part in SS304, which meets food standard; mirror polish for both interior and exterior.


Available Options
  • MOC SS316L; All Stainless Steel construction

  • Matte polishing

  • Jacket is available for cooling or heating if needed

  • It can be equipped with spraying system to mixer powder with liquid, normally 10%.

  • Explosion-proof; special voltage/frequency motor

  • PLC & HMI control; VFD for speed control

  • Vacuum Loading System


Technical Parameters

Model

Gross volume (L)

Load factor

Dimension

(mm, LxWxH)

Power (KW)

Weight (KG)

WLDH-0.1

100

0.4-0.8

1700×600×770

3

330

WLDH-0.3

300

0.4-0.8

2030×630×980

4

720

WLDH-0.5

500

0.4-0.8

2320×730×1130

7.5

980

WLDH-1

1000

0.4-0.8

2800×920×1320

11

1700

WLDH-1.5

1500

0.4-0.8

3180×1020×1550

11

1800

WLDH-2

2000

0.4-0.8

3310×1120×1640

15

2100

WLDH-3

3000

0.4-0.8

3750×1290×1820

18.5

3000

WLDH-4

4000

0.4-0.8

4220×1400×1990

22

3980

WLDH-5

5000

0.4-0.8

4220×1500×2100

22

4620

WLDH-6

6000

0.4-0.8

4700×1610×2260

30

6180

WLDH-8

8000

0.4-0.8

4420×2150×2470

37

8200

WLDH-10

10000

0.4-0.8

5520×2960×2720

45

8920

WLDH-12

12000

0.4-0.8

5720×3010×2840

45

9520

WLDH-15

15000

0.4-0.8

5840×3540×2940

55

9950

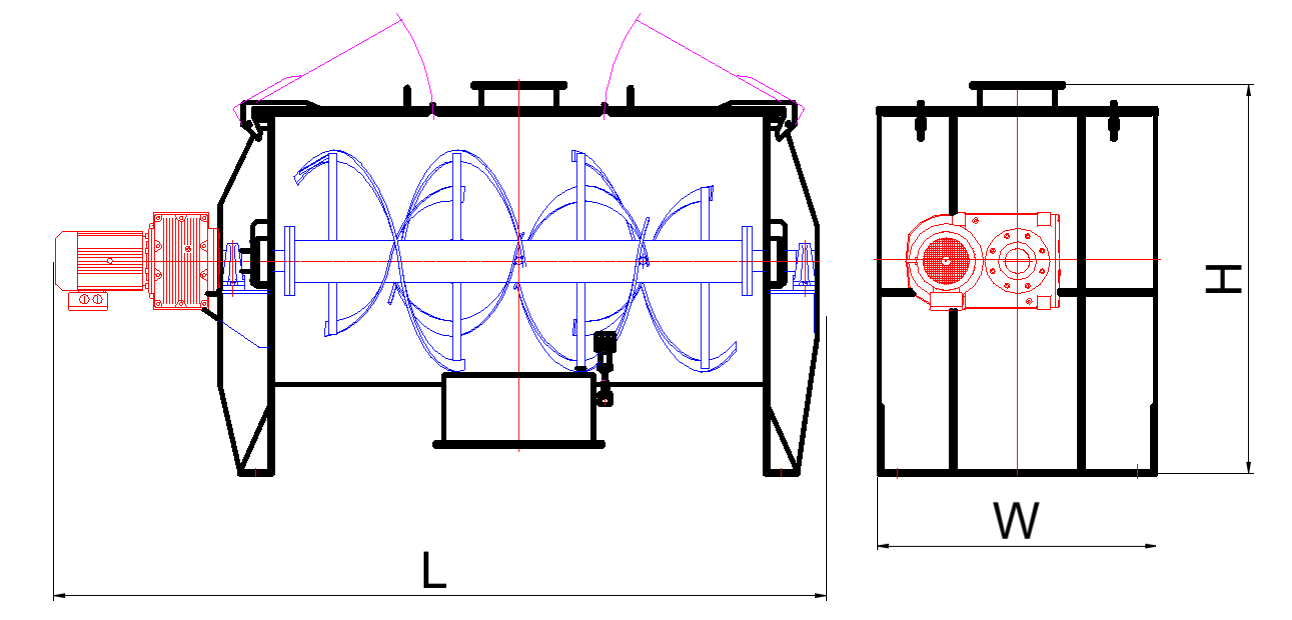

WX20220831-2037002x
