Contact Part: SS304 or SS316L;
CE Certificate;
GMP Standard;

Product Description

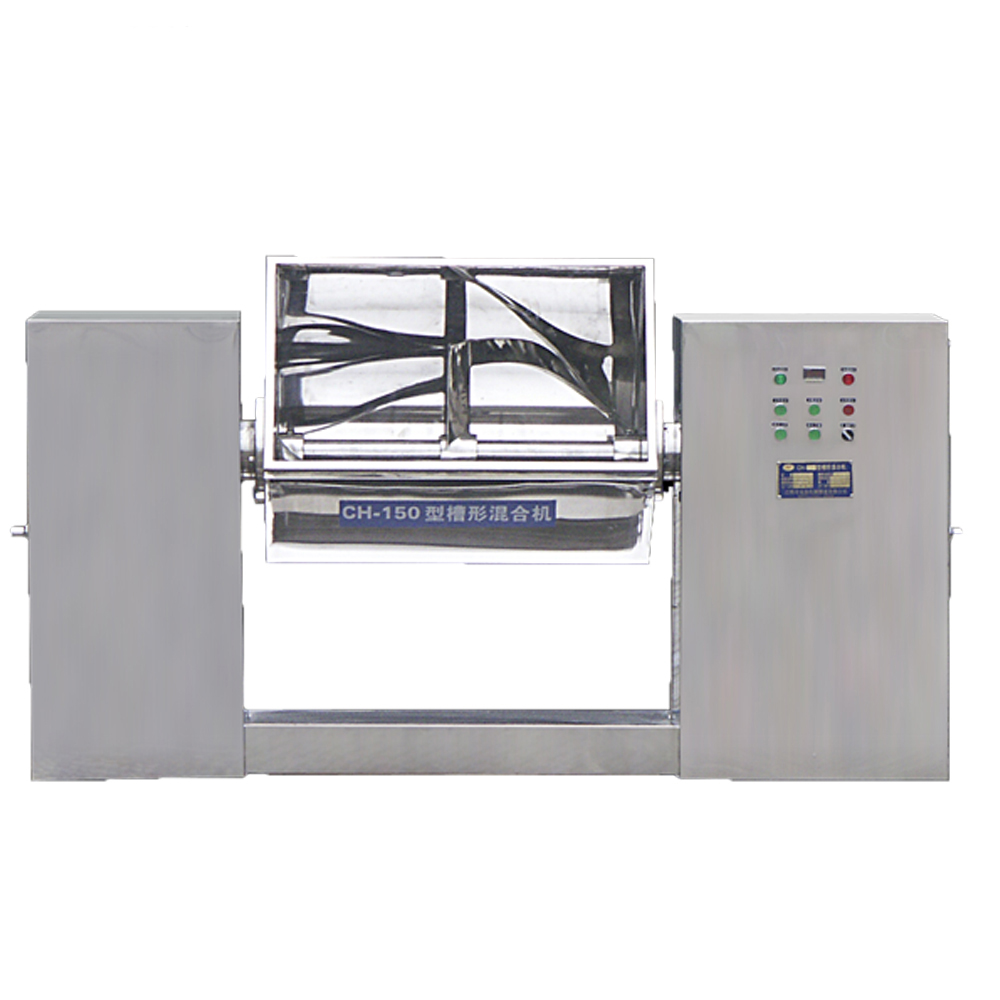

Main Application:As a whole stainless steel horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.

Working principle:S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly, operate with electrical control, it can set mixing time to make automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and reaching the high homegeneous mixing.

Technical Parameter:

Model

Gross volume

(L)

Load factor

Stirring Power

(KW)

Discharge power

(KW)

Weight

(kg)

CH-10

10

0.4-0.6

0.37

\

65

CH-50

50

0.4-0.6

1.1

0.37

180

CH-100

100

0.4-0.6

2.2

0.55

400

CH-150

150

0.4-0.6

3

0.55

420

CH-200

200

0.4-0.6

4

0.75

480

CH-400

400

0.4-0.6

7.5

1.1

620

CH-500

500

0.4-0.6

11

2.2

750
