RELA THJ Drum Mixers are used for a low-batch mixer for mixing, blending, homogenizing, dyeing of dry powders and granules particularly in smaller industries or when frequent product changes as required.
RELA THJ Drum Mixers are used for a low-batch mixer for mixing, blending, homogenizing, dyeing of dry powders and granules particularly in smaller industries or when frequent product changes as required.

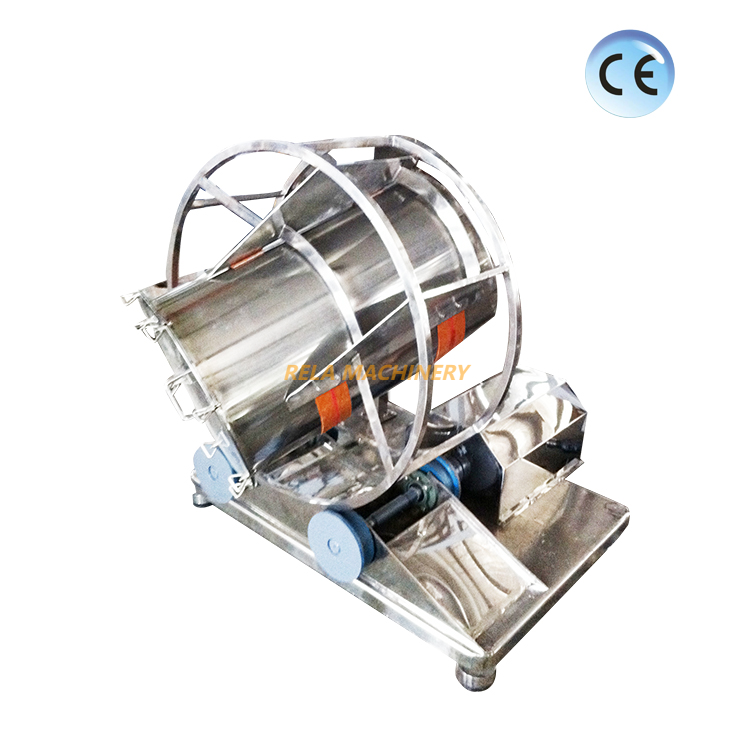

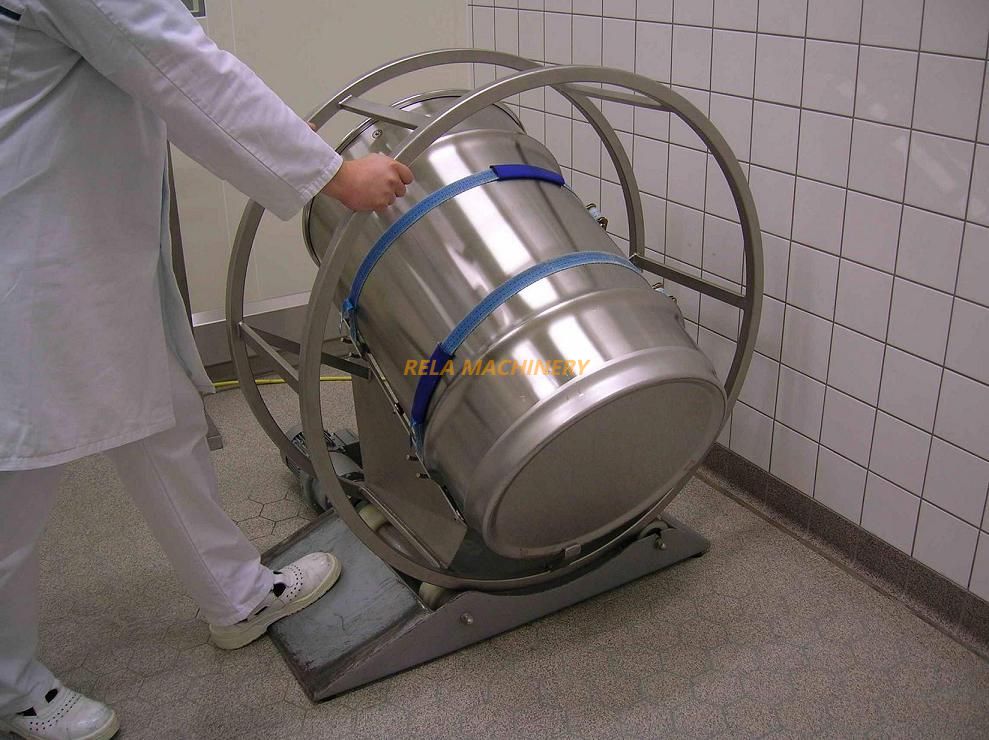

RELA drum mixers comprise of a drive unit and two shafts with 4 rollers located on the machine base with a ramp. A hoop is designed to hold the mixing drum which is fed with powdery or granulated materials. The mixing drum can be a standard drum or a drum in customized shape/volume. The hoop will be adapted to hold the drum tightly by a belt with two hooks.
it is used in mixing, homogenizing, and dyeing of powdery or granulated components in the plastics industry, chemical industry, drug and dye works, food industry as well as textile and leather industry.
▪ Food & Drinks
Breakfast Cereals, Enzymes, Flavors, Herbs, Minerals, Nutraceuticals, Seasonings, Spices, Tea Mixes, Tobacco, Vitamin Mixes
▪ Chemicals
Agrochemicals, Ceramic Powders, Detergents, Drugs, Dyestuffs, Leather Auxiliaries, Metal Powders, Pigments, Plastic Granules, Plastic Pellets, Plastic Powders, Textile Assistants
▪ Pharmaceuticals
Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances
RELA drum mixers comprise of a drive unit and two shafts with 4 rollers located on the machine base with a ramp. A hoop is designed to hold the mixing drum which is fed with powdery or granulated materials. The mixing drum can be a standard drum or a drum in customized shape/volume. The hoop will be adapted to hold the drum tightly by a belt with two hooks.
it is used in mixing, homogenizing, and dyeing of powdery or granulated components in the plastics industry, chemical industry, drug and dye works, food industry as well as textile and leather industry.
▪ Food & Drinks
Breakfast Cereals, Enzymes, Flavors, Herbs, Minerals, Nutraceuticals, Seasonings, Spices, Tea Mixes, Tobacco, Vitamin Mixes
▪ Chemicals
Agrochemicals, Ceramic Powders, Detergents, Drugs, Dyestuffs, Leather Auxiliaries, Metal Powders, Pigments, Plastic Granules, Plastic Pellets, Plastic Powders, Textile Assistants
▪ Pharmaceuticals
Active Agents, Biological Solids, Carcinogenic Substances, Concentrated Active Ingredients, Generics, Intermediate Products, Sterile Products, Toxic Substances

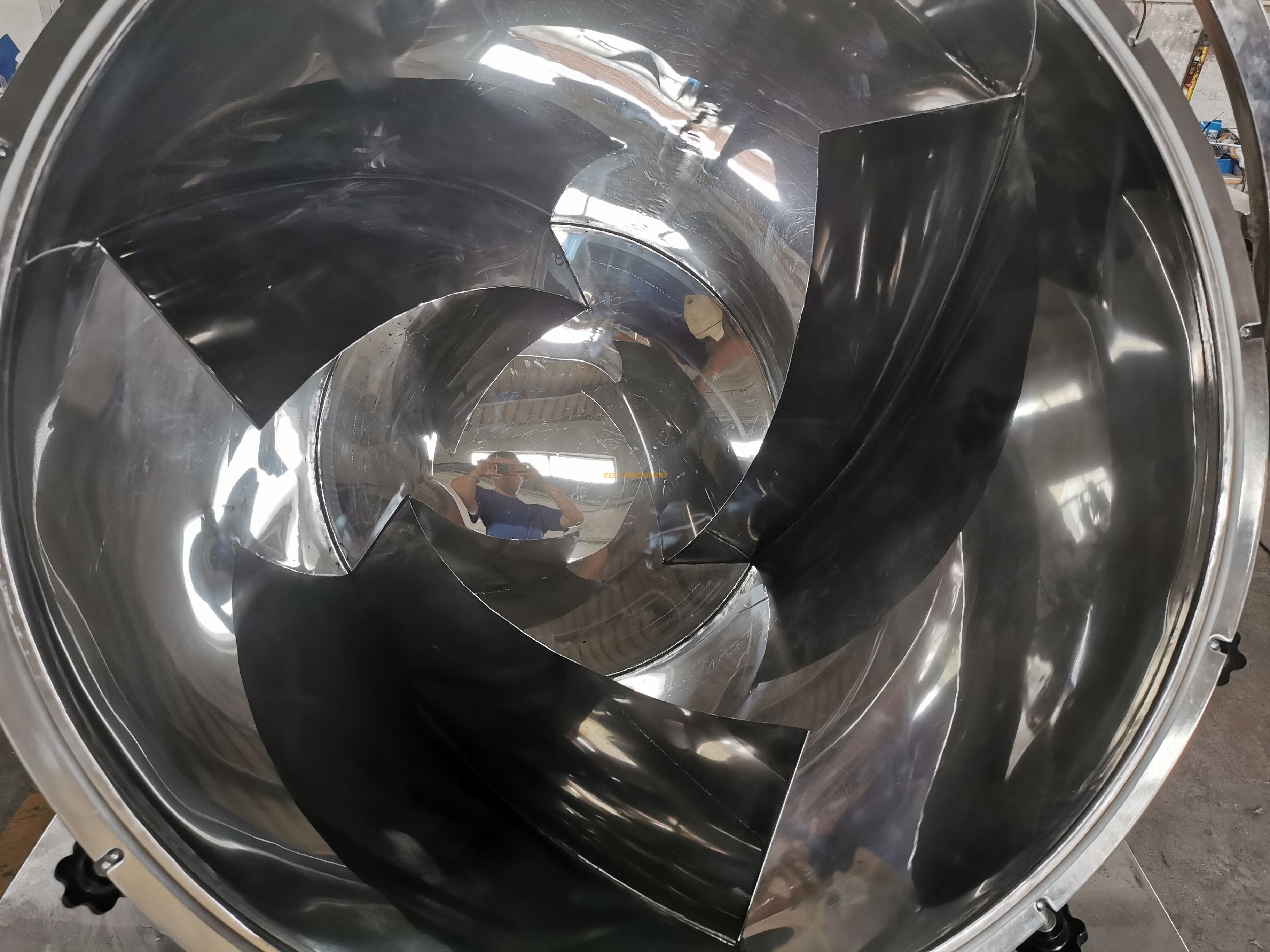

1. Drum Mixer have intensive mixing with optional internal paddle baffles mounted in the drum.
2. Drum Mixers as well suitable for frequent product changes, as the storage container at the same time serves as a mixing container.
3. Hoop can be used for transporting drum.
4. Easy exchanging of the mixing container.
5. No need for drum hoists, cradles, etc.
6. Easy cleaning of the mixing container.
1. Drum Mixer have intensive mixing with optional internal paddle baffles mounted in the drum.
2. Drum Mixers as well suitable for frequent product changes, as the storage container at the same time serves as a mixing container.
3. Hoop can be used for transporting drum.
4. Easy exchanging of the mixing container.
5. No need for drum hoists, cradles, etc.
6. Easy cleaning of the mixing container.
Model | Total Volume | Working Volume | Rotary speed | Power | Dimension | weight |
THJ-10 | 10L | 4-6L | 34RPM | 0.37KW | 650x650x700mm | 150 |
THJ-50 | 50L | 20-30L | 34RPM | 0.75KW | 850x780x980mm | 180 |
THJ-100 | 100L | 40-60L | 32RPM | 1.1KW | 1060x900x1180mm | 200 |
THJ-200 | 200L | 80-120L | 28RPM | 1.1KW | 1300x1280x1380mm | 280 |
THJ-400 | 400L | 160-240L | 24RPM | 2.2KW | 1620x1480x1600mm | 320 |
THJ-800 | 800L | 320-480L | 22RPM | 3KW | 1980x1850x1940mm | 400 |
Model | Total Volume | Working Volume | Rotary speed | Power | Dimension | weight |
THJ-10 | 10L | 4-6L | 34RPM | 0.37KW | 650x650x700mm | 150 |
THJ-50 | 50L | 20-30L | 34RPM | 0.75KW | 850x780x980mm | 180 |
THJ-100 | 100L | 40-60L | 32RPM | 1.1KW | 1060x900x1180mm | 200 |
THJ-200 | 200L | 80-120L | 28RPM | 1.1KW | 1300x1280x1380mm | 280 |
THJ-400 | 400L | 160-240L | 24RPM | 2.2KW | 1620x1480x1600mm | 320 |
THJ-800 | 800L | 320-480L | 22RPM | 3KW | 1980x1850x1940mm | 400 |
