Universal Mill LFJ Model
Home » Products » Grinding Machine » Universal Mill LFJ Model

loading

Universal Mill LFJ Model Universal Mill LFJ Model

Universal Mill LFJ Model

Availability:
Quantity:
Application

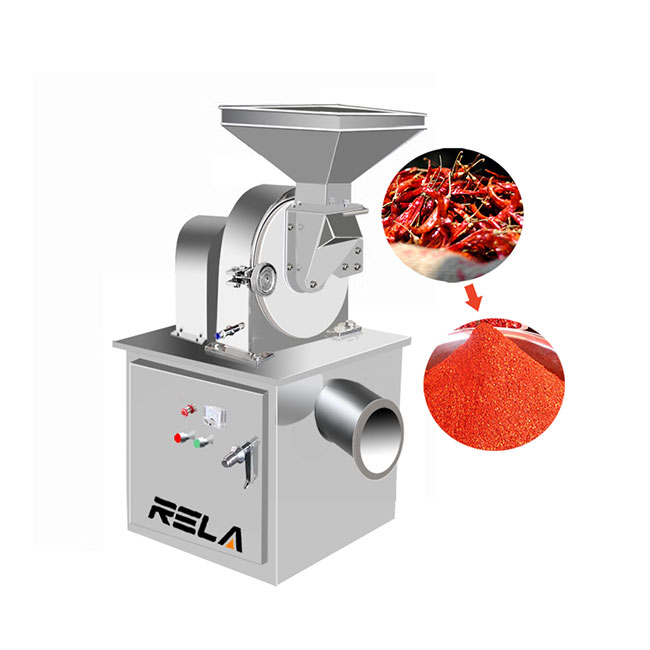

RELA LFJ MILL is a multifunctional fine powder grinder. It can grind powder at 20-120mesh. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean, coffee, etc.

Working Principle

There are a disc with several moving tools as a rotor and serrated liners as stator. The big raw material, being fed into the crushing chamber through a hopper, is sheared, cut, impacted into small size by the rotor and stator. The crushed product goes out automatically via a sieve and discharged from the outlet port.

It is designed according to cGMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc..

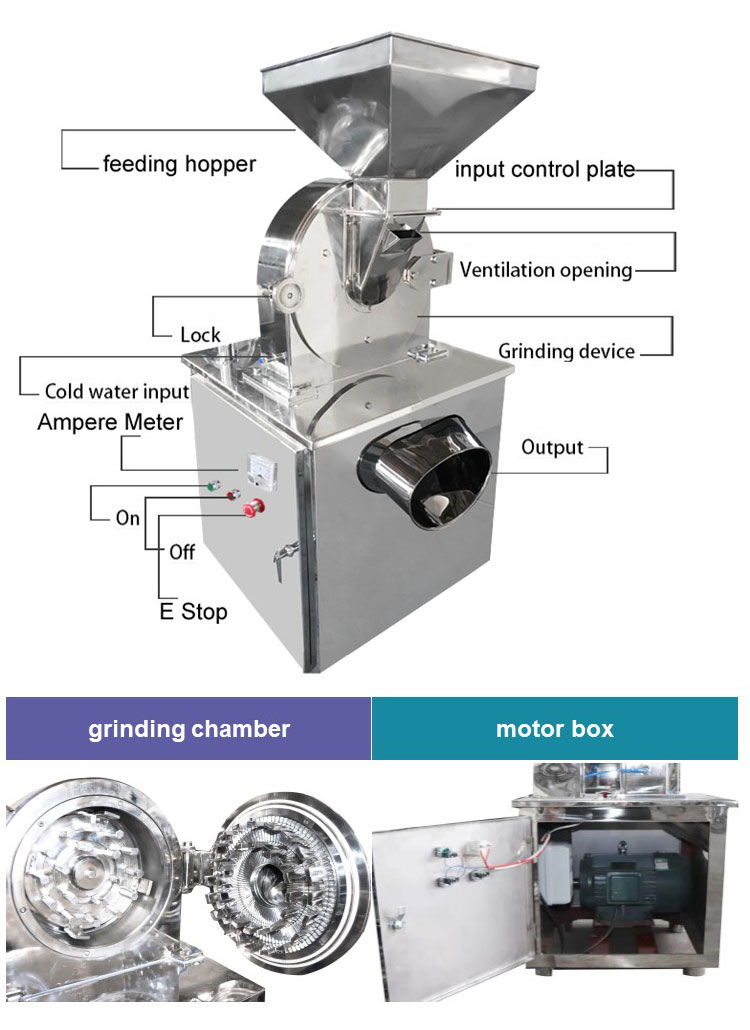

LFJ Mill6.1产品详情-外形介绍


Technical Parameters

Model

Capacity

(kg/h)

Main Speed

(rpm)

Input Size

(mm)

Output Size

(mesh)

Power

(KW)

Dimension

(LxWxH, mm)

Weight

(kg)

LFJ-180

5-30

5500

<10

12-120

2.2

680x550x900

100

LFJ-20B

20-150

5300

4

700x600x1300

160

LFJ-30B

30-300

4500

5.5

800x700x1450

250

LFJ-40B

40-800

3800

7.5

900x700x1650

450

LFJ-60B

80-1200

3000

22

1300x950x1950

800

LFJ-80B

150-2000

2100

30

1500x1100x2100

1200

LFJ-100B

300-3000

1600

45

2000x1500x2500

1600
