Fitz Mill GFS Model
Home » Products » Grinding Machine » Fitz Mill GFS Model

loading

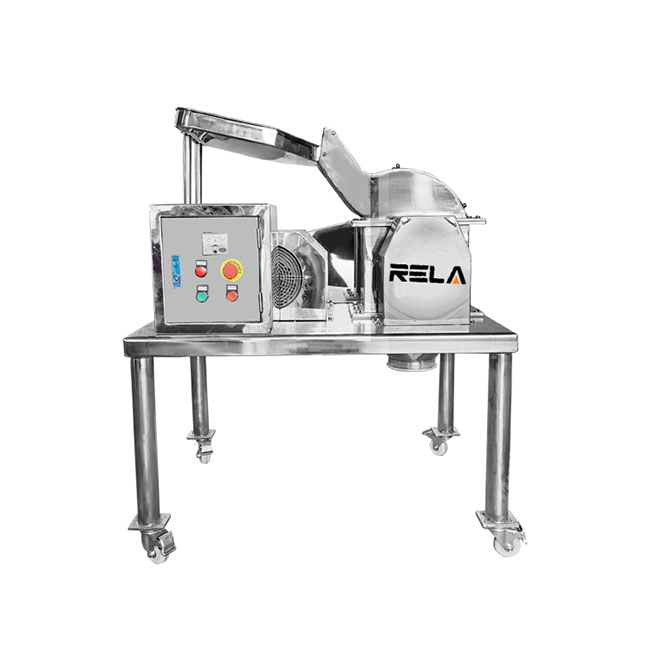

Fitz Mill GFS Model Fitz Mill GFS Model

Fitz Mill GFS Model

Availability:
Quantity:
Application

RELA GFS Fitz MILL is a blades type grinder. It can grind powder at 12-120mesh. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc.

Working Principle

There are a rotor with blades and a stator with serrated liners. The big raw material, being fed into the crushing chamber through a hopper, is sheared, cut, impacted into small size by the rotor and stator. The crushed product goes out automatically via a sieve and discharged from the outlet port.

It is designed according to cGMP standard and made of stainless steel. With the features of simple structure, easy cleaning, low noise, etc..


GFS 1

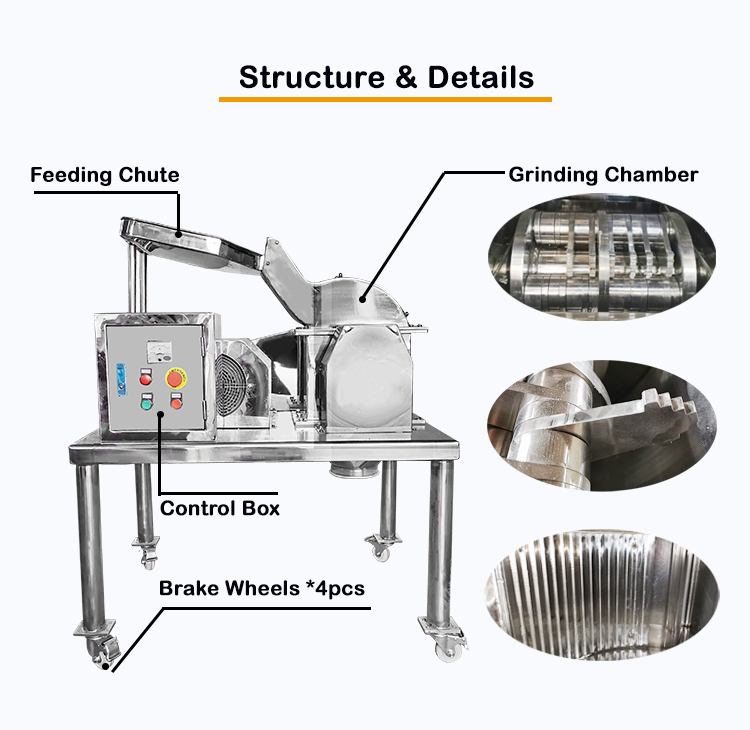

GFS 2

Technical Parameters

Model

GFS-8

GFS-16

GFS-32

Capacity(kg/h)

10-100

50-300

100-550

Fineness of product(mesh)

12-120

12-120

12-120

Power(KW)

3

7.5

11

Speed (r/min)

4200

4200

4200

Overall dimension

(L×W×H)(mm)

1050×600×1600

1100×860×1520

1280×950×1600

Weight (kg)

150

250

320
