Roller Mill Model RM-B
Home » Products » Grinding Machine » Roller Mill Model RM-B

loading

Roller Mill Model RM-B Roller Mill Model RM-B

Roller Mill Model RM-B

Availability:
Quantity:
Application

RELA RM-B Roller Mill, improved on basis of old RM model Roller Mill, is specially designed for roasted coffee bean, as well as the materials that contain much oil content, such as sesame, peanut and almond, etc. It can grind such materials at normal temperature. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc.

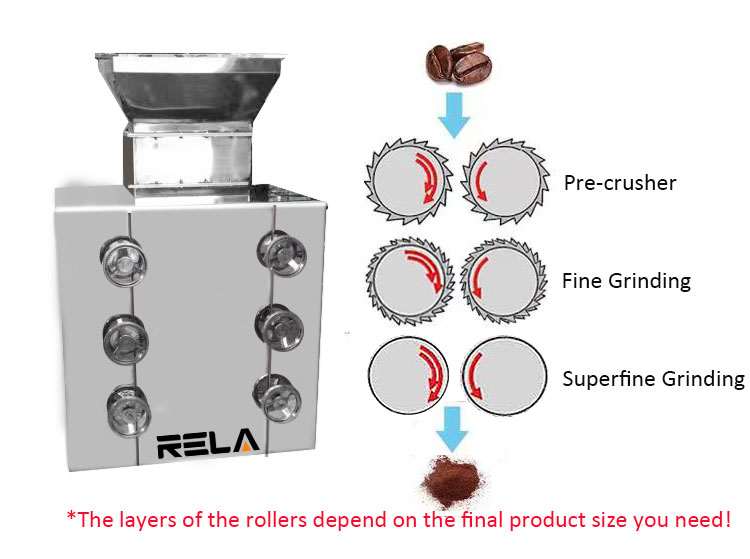

Working Principle

The raw materials are into the roller area from hopper, they are milled into powder by the squeezed of the rollers. You can get different size of final production by adjusting the distance of two rollers. The machine has some advantages of easy operation, low noise and high capacity which is the best mill for oil materials.

This machine is designed according to cGMP standard and made of stainless steel.

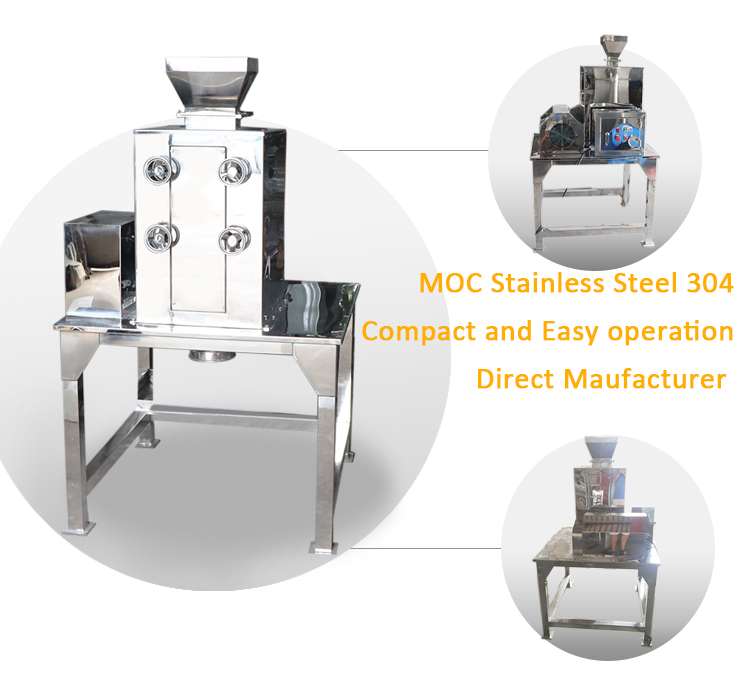

RM 1

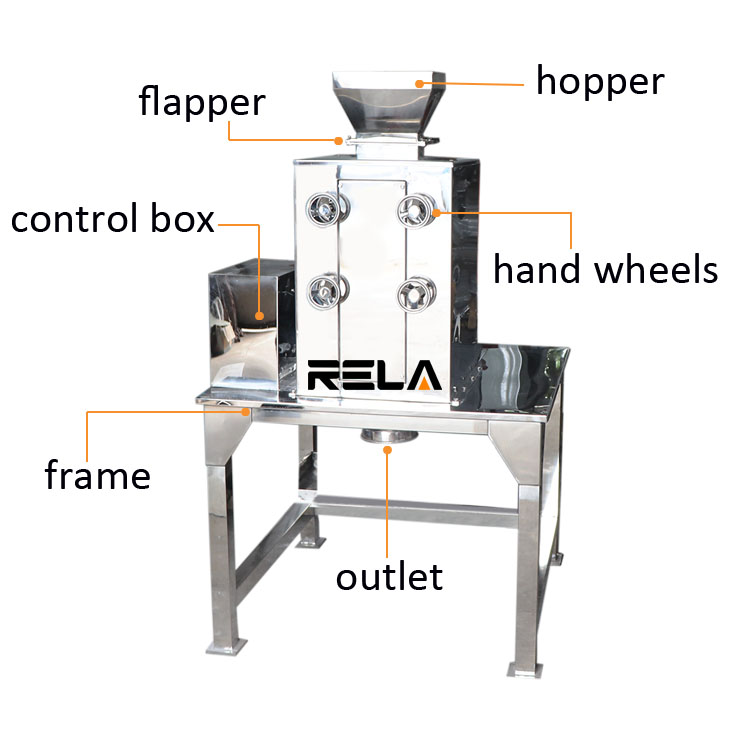

RM 3

RM 4

Technical Parameters

Model

Capacity

Fineness

Power

Roller size

Size (L*W*H)

Weight

RM2-300B

100-300kg/h

8-40 mesh

5.5 kw

Φ200*300mm

1450*1050*1550mm

480 kg

RM3-300B

100-300kg/h

8-80 mesh

5.5 kw

1450*1050*1830 mm

680 kg

RM2-400B

200-400kg/h

8-40 mesh

7.5KW

Φ200*400mm

1520*1080*1580mm

580kg

RM3-400B

200-400kg/h

8-80 mesh

7.5KW

1520*1080*1850mm

790kg

RM2-500B

300-500kg/h

8-40 mesh

11kw

Φ216*500mm

1650*1150*1650 mm

680 kg

RM3-500B

300-500kg/h

8-80 mesh

11kw

1650*1150*1920 mm

980 kg
