1. Press wet mass through perforated screen to get require-sized cylindrical extrudates;
2. Wet granulation for Food, Chemical and Pharmaceutical products;
3. Capacity: 50-300 kg/h;
4. Different granule size can be achieved by changing screen
1. Press wet mass through perforated screen to get require-sized cylindrical extrudates;
2. Wet granulation for Food, Chemical and Pharmaceutical products;
3. Capacity: 50-300 kg/h;
4. Different granule size can be achieved by changing screen

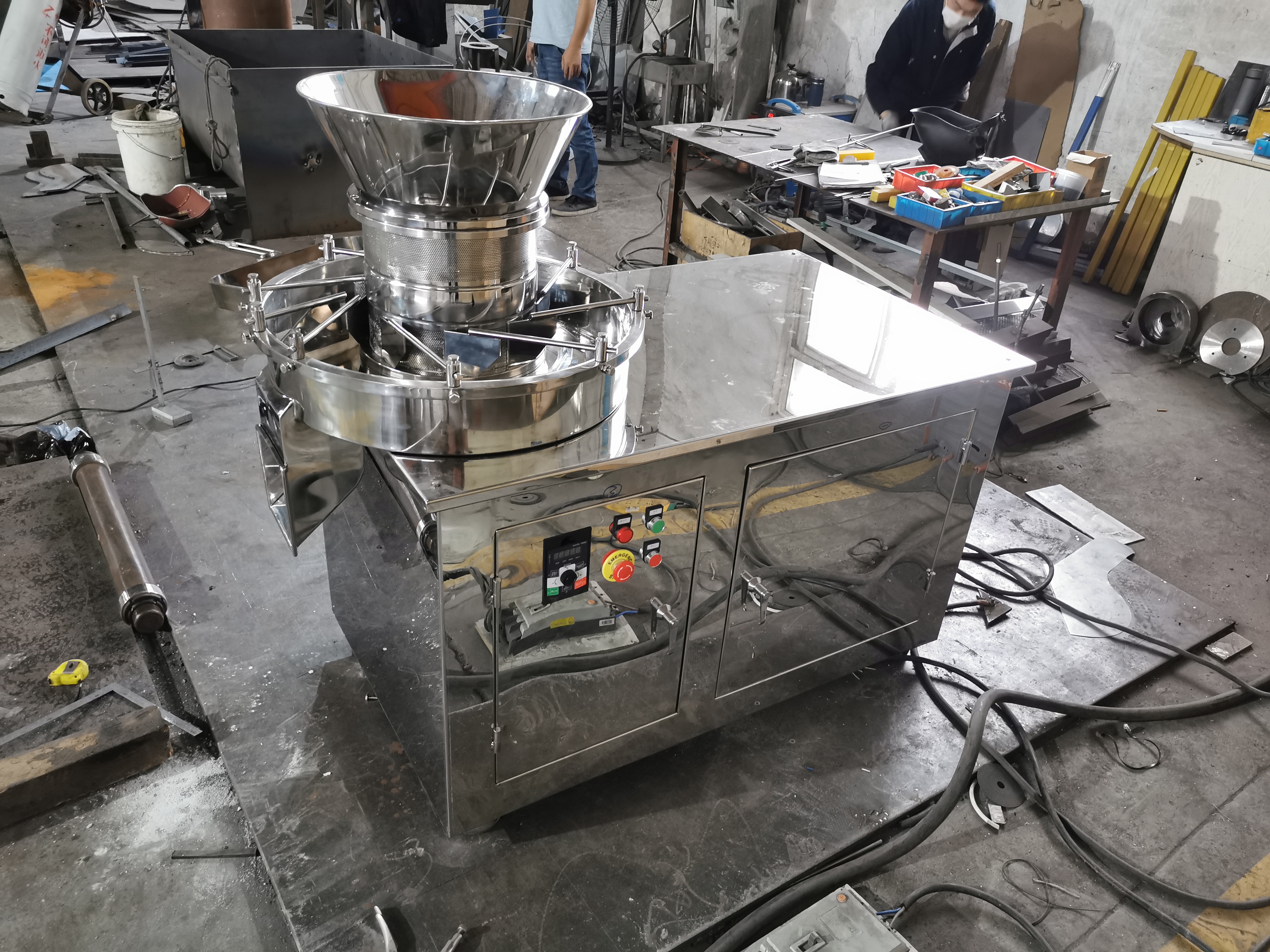

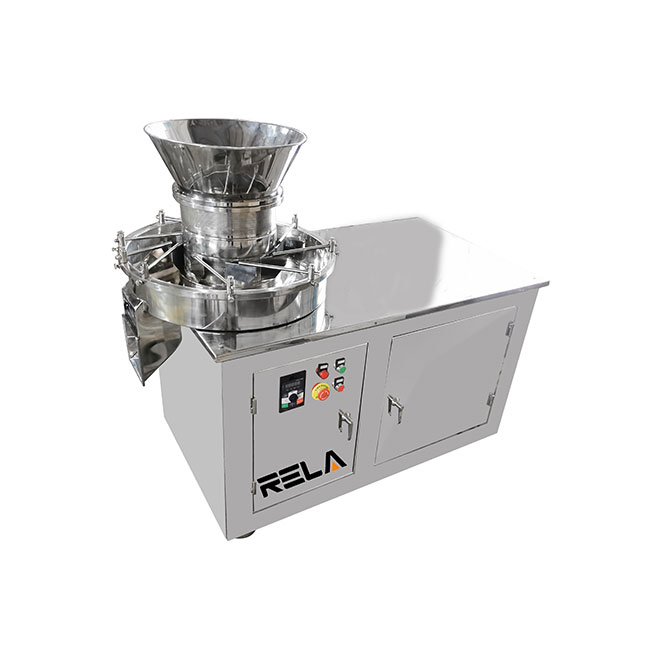

RELA Rotary Granulator (model: ZL) is the process of making granule from wet material or it can be inline or operated as a single machine.
It is mainly composed of drive motor, feeding hopper, extrusion blades, screen, scraper and discharging hopper. Wet mass is gravity fed into the machine and extruded through the perforated screen by rotary blades to get require-sized cylindrical granule. The finished granules will be discharged via the discharging hopper.
It has been commonly used in pharmaceutical, food and chemical industries for making granules with wet mass.
RELA Rotary Granulator (model: ZL) is the process of making granule from wet material or it can be inline or operated as a single machine.
It is mainly composed of drive motor, feeding hopper, extrusion blades, screen, scraper and discharging hopper. Wet mass is gravity fed into the machine and extruded through the perforated screen by rotary blades to get require-sized cylindrical granule. The finished granules will be discharged via the discharging hopper.
It has been commonly used in pharmaceutical, food and chemical industries for making granules with wet mass.
Simple to installation
Compact size
Easy to clean
Low noise level
Easy to maintenance
Easy to operation
Easy to move
Easy to change sieve
Cost effectiveness
Simple to installation
Compact size
Easy to clean
Low noise level
Easy to maintenance
Easy to operation
Easy to move
Easy to change sieve
Cost effectiveness
Knife size (mm) | 300 |
Production capacity(kg/h) | 50-300 |
Power of motor(kw) | 4 |
Diameter of granule(mm) | φ1-5(adjustable by changing screen) |
Overall dimensions(mm) | 1300×600×1300 |
Weight (kg) | 600 |
Knife size (mm) | 300 |
Production capacity(kg/h) | 50-300 |
Power of motor(kw) | 4 |
Diameter of granule(mm) | φ1-5(adjustable by changing screen) |
Overall dimensions(mm) | 1300×600×1300 |
Weight (kg) | 600 |
