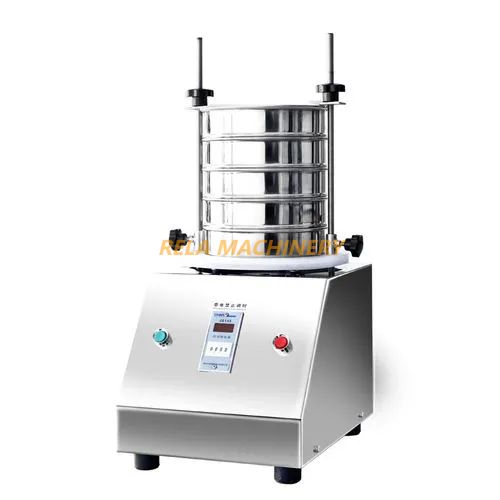

Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine
Home » Products » Lab Machines & Equipment » Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine

loading

Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine
Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine
Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine
Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine
Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine

Lab Scale Stainless Steel Vibrating Screener Small Sifter Machine

Availability:
Quantity:
  • ZS-200

  • RELA

  • ZS-200

It is widely used in scientific research units, laboratories, inspection rooms, production control, etc. in the food, medicine, chemical industry, abrasives, pigments, mining, metallurgy, geology, ceramics, national defense and other industries for the inspection, screening, classification, particle size analysis, debris content analysis, etc. of solid, powder, slurry materials and other materials.

Product Description


Application:

It is widely used in scientific research units, laboratories, inspection rooms, production control, etc. in the food, medicine, chemical industry, abrasives, pigments, mining, metallurgy, geology, ceramics, national defense and other industries for the inspection, screening, classification, particle size analysis, debris content analysis, etc. of solid, powder, slurry materials and other materials.


Main Feature:

1) High efficiency; exquisite design and durability; any powder or liquid can be screened or filtered;

2) Small size; easy to move;

3) The sieving machine can place up to eight layers of standard sieves (including bottom sieves), which can accurately separate a kind of granular material into 2 to 9 particle segments at the same time;

4) Automatically shut down at a scheduled time;

5) Ensure experimental repeatability;

6) Full functions and simpler operation;

7) Low noise and light weight;

8) Platform operation; no need to be fixed.

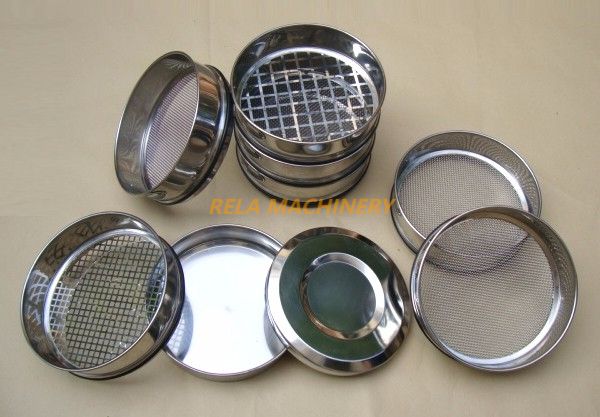

The Standard Size Of The Screen:


MESH (HOLE SIZE)


8# (2.63mm)          10# (2.00mm)      12# (1.70mm)       14# (1.40mm),

16# (1.18mm)        18# (1.00mm)      20# (0.85mm)       25# (0.71mm),

30# (0.60mm)        35# (0.50mm)      40# (0.425mm)     45# (0.355mm),

50# (0.30mm)        60# (0.25mm)       70# (0.212mm)    80# (0.18mm),

100# (0.15mm)     120# (0.125mm)   140# (0.106mm)   170# (0.09mm),

200# (0.075mm)   230# (0.063mm)   270# (0.053mm)   325# (0.045mm)



Technical Parameter:

Screen size

Ø200mm

Screening particle size

0.025~160   mm

Motor power

0.125   KW

Noise

less   than 50 dB

Amplitude

0~3   mm

Vibration frequency

1440   times/min

Power supply

220V/1P/50HZ

Overall dimensions

400mm*300mm*300mm+N*50mm   (L*W*H)

Weight

30   Kg
