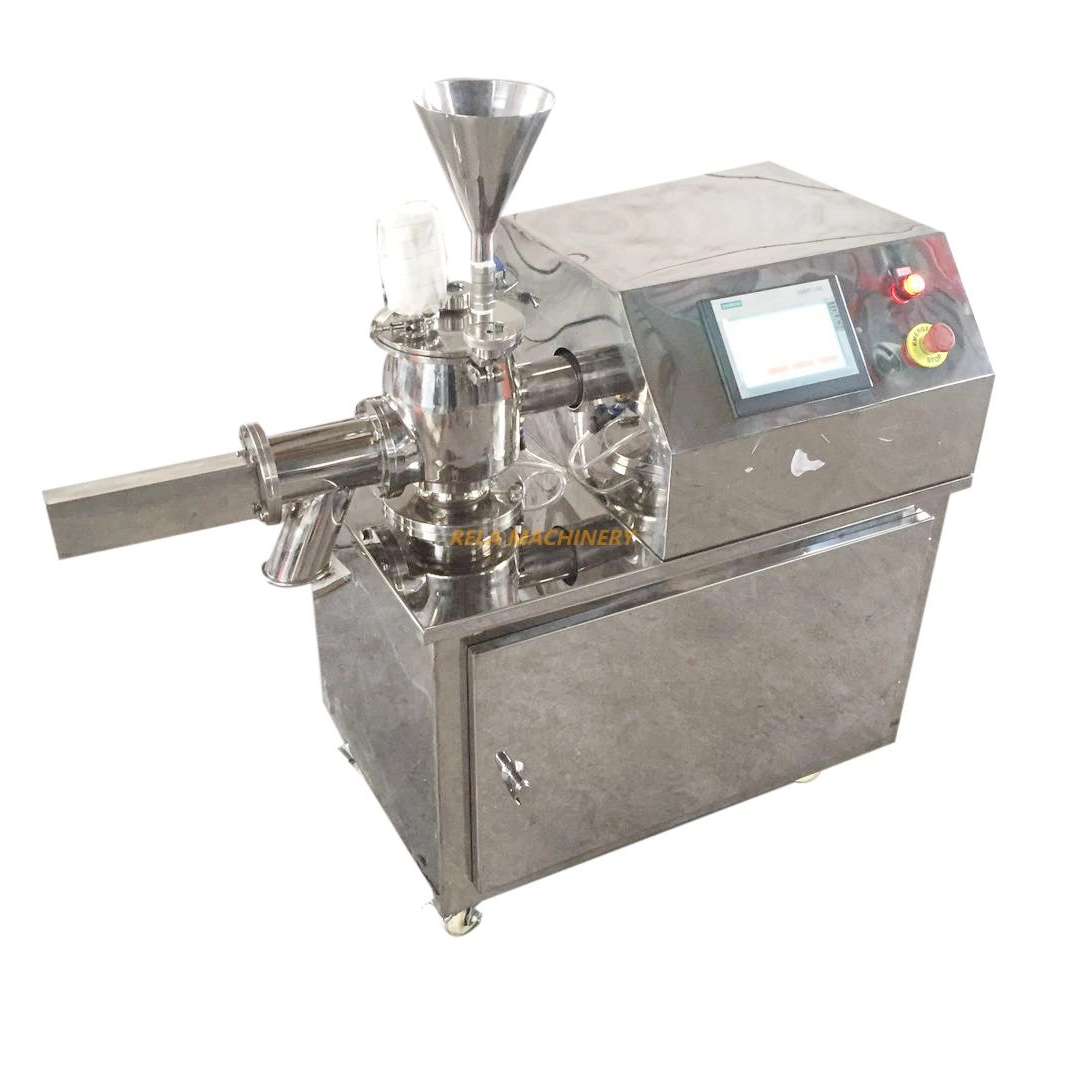

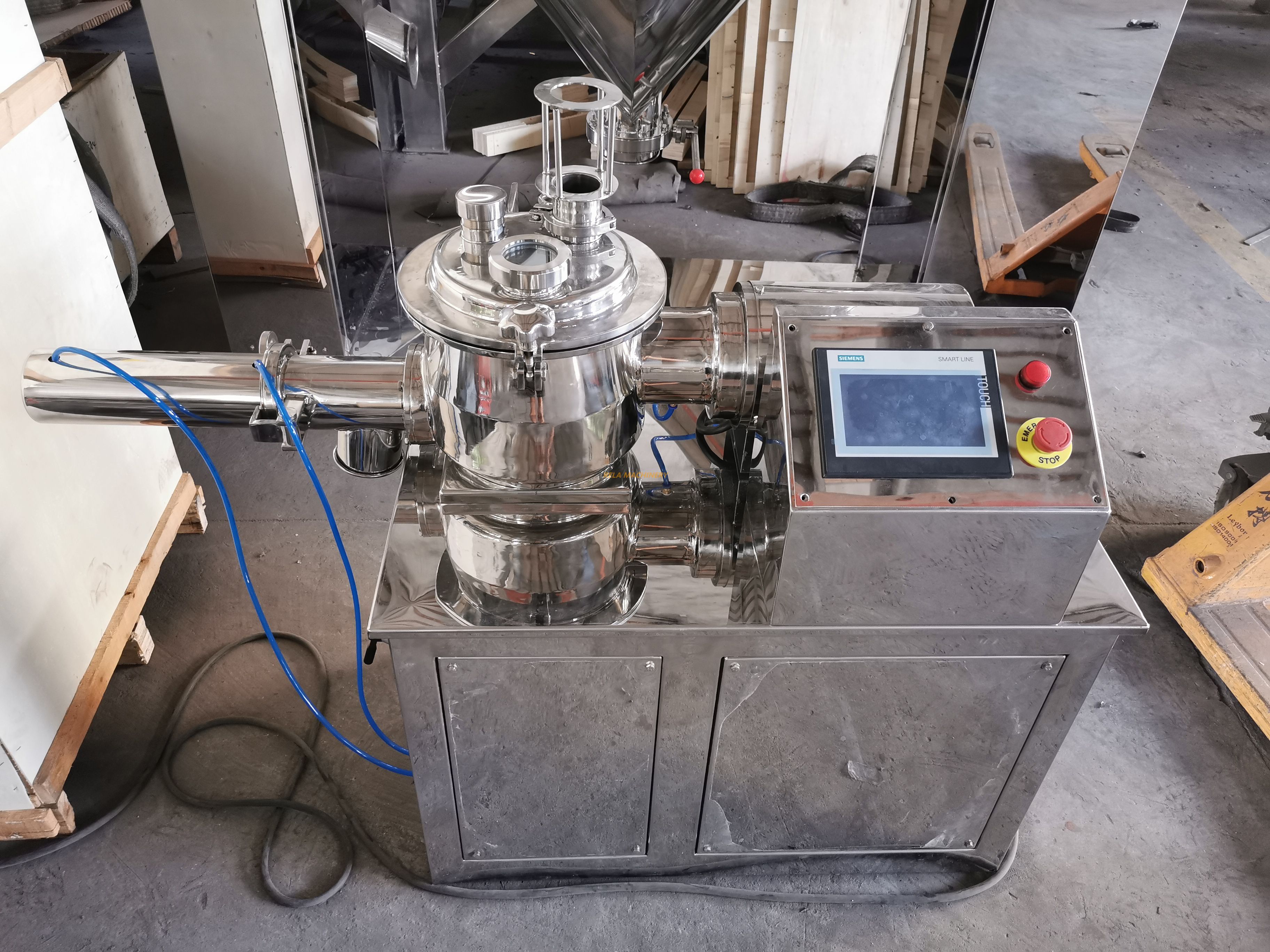

Lab Scale RMG Model Rapid Mixer Granulator
Home » Products » Lab Machines & Equipment » Lab Scale RMG Model Rapid Mixer Granulator

loading

Lab Scale RMG Model Rapid Mixer Granulator Lab Scale RMG Model Rapid Mixer Granulator
Lab Scale RMG Model Rapid Mixer Granulator Lab Scale RMG Model Rapid Mixer Granulator
Lab Scale RMG Model Rapid Mixer Granulator Lab Scale RMG Model Rapid Mixer Granulator
Lab Scale RMG Model Rapid Mixer Granulator Lab Scale RMG Model Rapid Mixer Granulator

Lab Scale RMG Model Rapid Mixer Granulator

Availability:
Quantity:
  • RMG

  • RELA

  • RMG


RELA Lab Scale Rapid Mixer Granulator is the process of mixing dry material, or making granule from wet material for laboratory application.
It can be used as Super Mixer for dry powders, or as Rapid Mixer Granulator to make wet granule from dry powder, in Pharmaceutical Industry, Foodstuff Industry, Chemical Industry, etc.
Application

RELA Lab Scale Rapid Mixer Granulator is the process of mixing dry material, or making granule from wet material for laboratory application.

It can be used as Super Mixer for dry powders, or as Rapid Mixer Granulator to make wet granule from dry powder, in Pharmaceutical Industry, Foodstuff Industry, Chemical Industry, etc.


Working Principle

The dry powders are fed into the bowl from top, and mixed together by propellers. Then the binder (water or other liquid, adhesive, etc.) is injected into the bowl from the port on cover. The dry powder and binder are mixed and become wet lump. Meanwhile, a chopper at side wall rotates fast to chop and cut the wet lump into small uniform granule, like loose snowflakes, which can be used for capsule or pressing tablet after drying.

The machine has the advantages of uniform mixing, less binder consumption, strong kneading ability, closed production process, no solid agglomerates and less fine powder, etc.

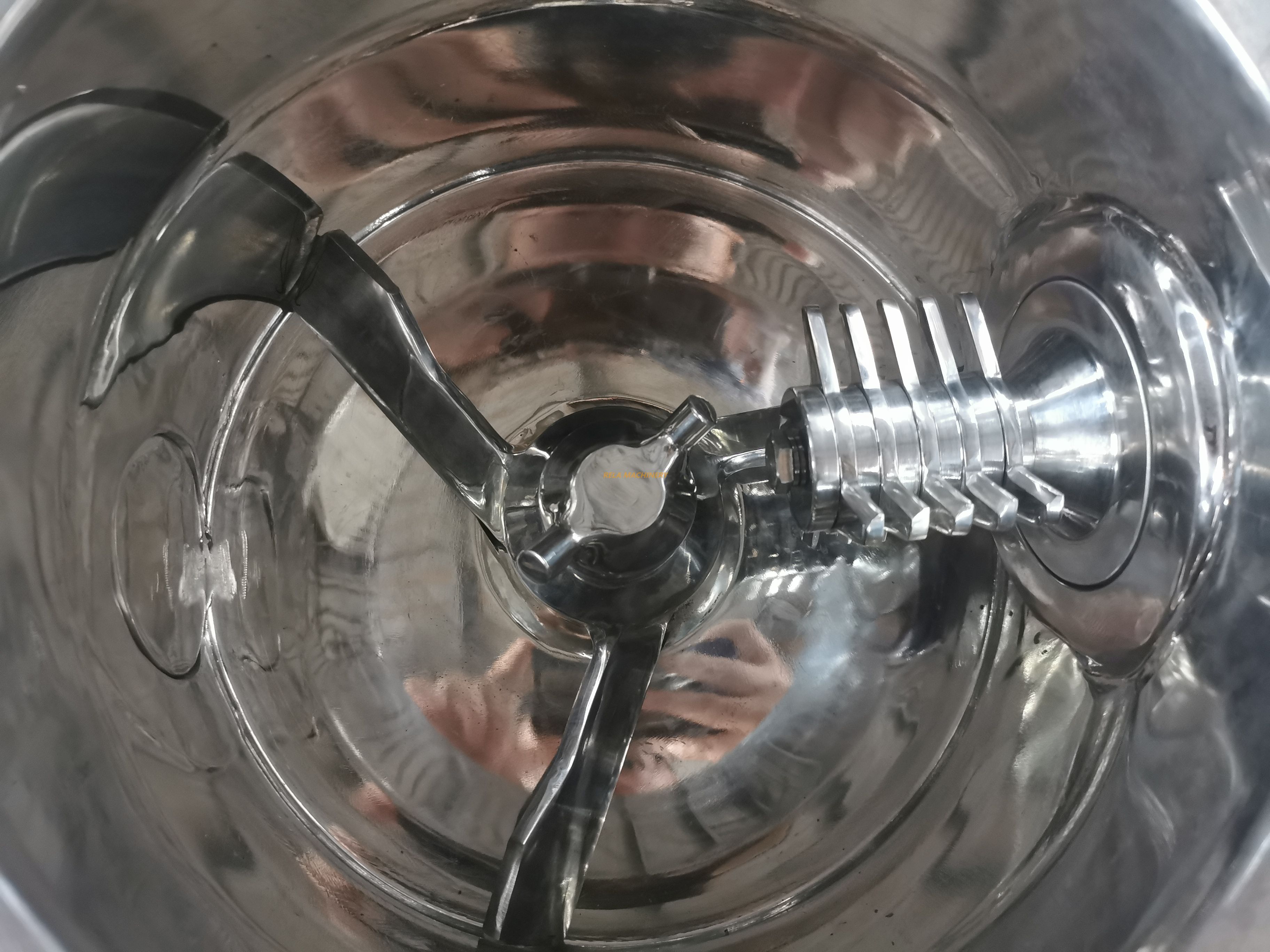

Impeller & Chopper

An impeller is utilized for the homogeneous blending or mixing.

The work of the chopper is to break down the larger Agglomerated materials and change over them into granules.

The impeller and chopper are air-sealed avoiding the contamination.


Technical Parameter

Type

RMG-1,3,5*

RMG-10

RMG-15

Volume (L)

1, 3, 5

10

15

Capacity (kg/batch)

0.3, 1, 2

3

5

Propeller speed (rpm)

300/150

300/150

300/150

Propeller motor (KW)

1.3/1.8

1.5/2.2

1.5/2.2

Chopper speed (rpm)

3000/1500

3000/1500

3000/1500

Chopper motor (KW)

0.55/0.75

1.3/1.8

1.3/1.8

Working time (min)

10-20

10-20

10-20

Granule size (mesh)

20-80

20-80

20-80

* The 1,3,5L bowls can be interchangeable.
