VS
RELA
VS
Application:

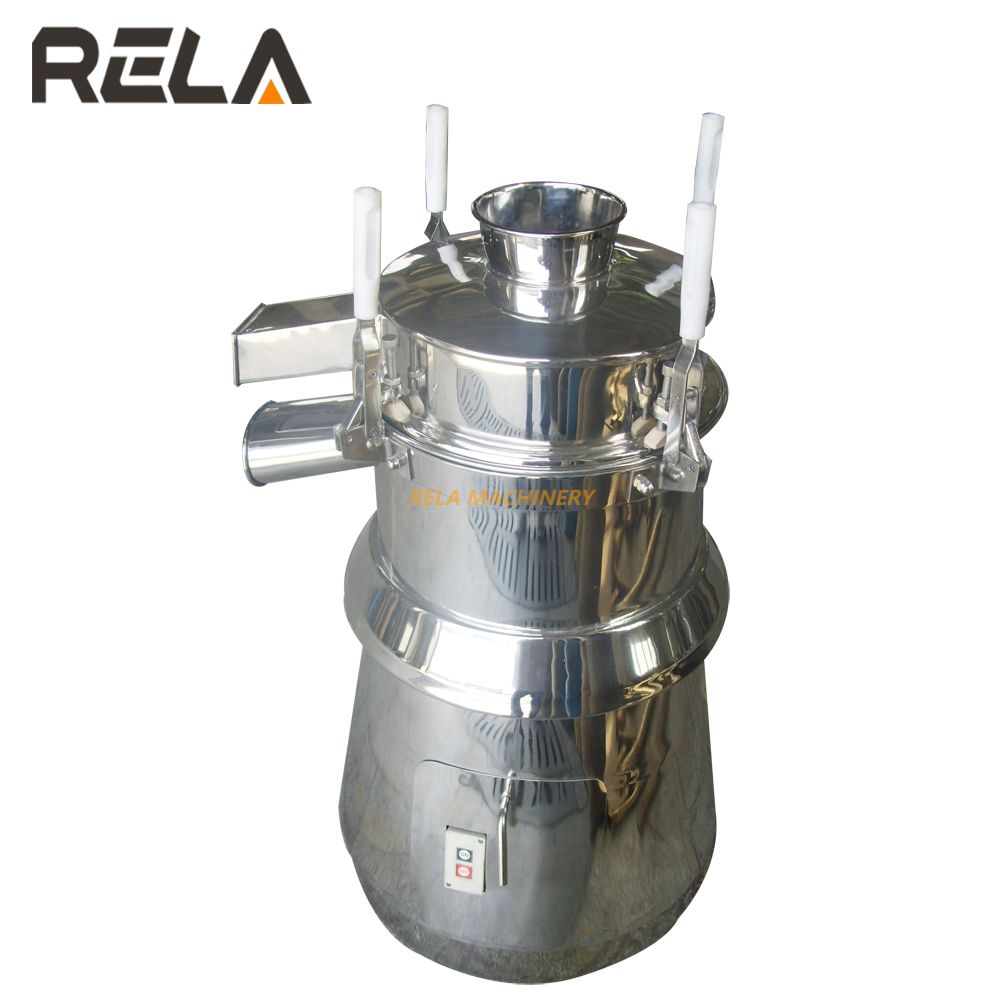

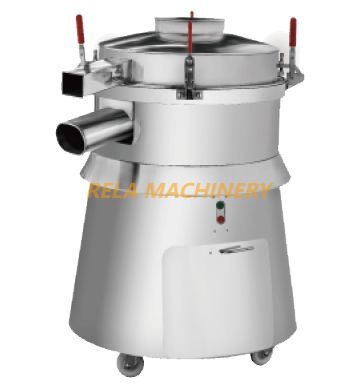

Vibrating Sifting Machine (VS) is a kind of high-precision screening machinery, which separates materials with different sizes. It is suitable for particles, powder, liquid and other materials classification, filtration and removal of impurities.
Working Principle:

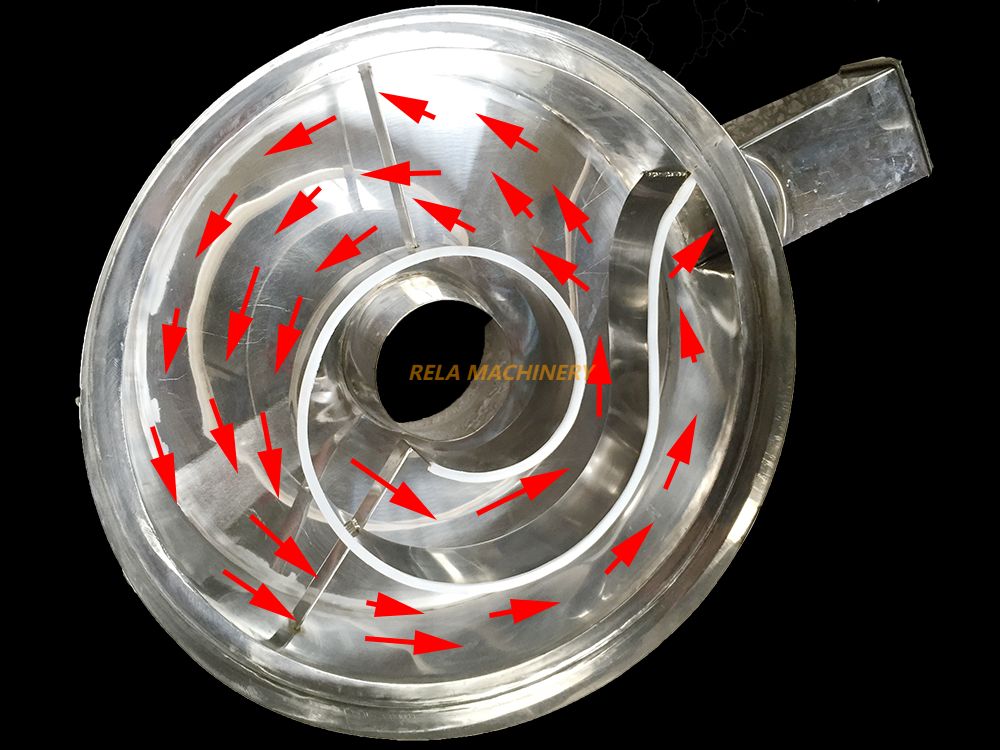

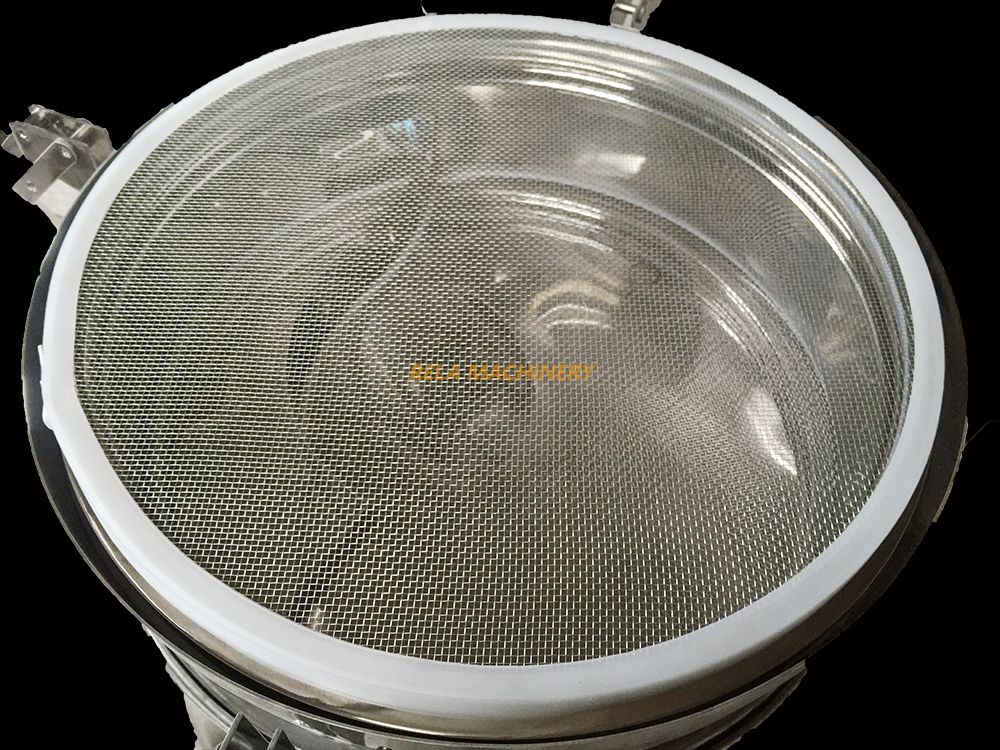

The material is fed from the top hopper. The big size material goes out from upper deck and the small size material goes through the screen and out from lower deck. It also can be three (3) outlets with two (2) screen layers.
The power source of the sifter machine comes from the vibrating motor in the base support. The eccentric blocks, mounted at two ends of motor,transform rotation motion of motor to horizontal motion, vertical motion, slant motion, then transmit the motions to screen surface. These motions make material get through the sieve and towards the outlet
Technical Parameters:
Model | Capacity | Screen Size | Power | Spindle Speed | Dimension | Weight |
VS-350-1S | 60-500kg/h | 12-120mesh | 0.55kw | 1380rpm | 540*540*1060mm | 100kg |
VS-350-2S | 540*540*1185mm | 110kg | ||||
VS-515-1S | 60-1300kg/h | 12-120mesh | 0.75kw | 1370rpm | 710*710*1290mm | 180kg |
VS-515-2S | 710*710*1420mm | 200kg | ||||
VS-650-1S | 180-2000kg/h | 12-120mesh | 1.5kw | 1370rpm | 880*880*1350mm | 250kg |
VS-650-2S | 880*880*1500mm | 280kg | ||||
*Model 1S has one screen & two outlets; Model 2S has two screens & three outlets |
Application:
Vibrating Sifting Machine (VS) is a kind of high-precision screening machinery, which separates materials with different sizes. It is suitable for particles, powder, liquid and other materials classification, filtration and removal of impurities.
Working Principle:
The material is fed from the top hopper. The big size material goes out from upper deck and the small size material goes through the screen and out from lower deck. It also can be three (3) outlets with two (2) screen layers.
The power source of the sifter machine comes from the vibrating motor in the base support. The eccentric blocks, mounted at two ends of motor,transform rotation motion of motor to horizontal motion, vertical motion, slant motion, then transmit the motions to screen surface. These motions make material get through the sieve and towards the outlet
Technical Parameters:
Model | Capacity | Screen Size | Power | Spindle Speed | Dimension | Weight |
VS-350-1S | 60-500kg/h | 12-120mesh | 0.55kw | 1380rpm | 540*540*1060mm | 100kg |
VS-350-2S | 540*540*1185mm | 110kg | ||||
VS-515-1S | 60-1300kg/h | 12-120mesh | 0.75kw | 1370rpm | 710*710*1290mm | 180kg |
VS-515-2S | 710*710*1420mm | 200kg | ||||
VS-650-1S | 180-2000kg/h | 12-120mesh | 1.5kw | 1370rpm | 880*880*1350mm | 250kg |
VS-650-2S | 880*880*1500mm | 280kg | ||||
*Model 1S has one screen & two outlets; Model 2S has two screens & three outlets |
